HVE9210/HVE9230
AVC/H.264 HDTV/SDTV Encoder
HVE9210/HVE9230
Embedded Audio Features up to 16 ch/8 PES and 1 Frame Super Low Latency
HVE9230 is enhanced AVC/H.264 encoder which provides advanced features of 16 channels audio for 8 stereo, 5.1 ch. + stereo, or 8 PES or Ancillary Data transmission.
HVE9210/HVE9230 also provides One Frame Super Low Latency for high quality video transmission, Closed Cationing for IPTV or CATV AVC/H.264 transmissions.
Key features
- Supports AVC/H.264 HDTV/SDTV Encoding
- Low Latency Mode (Minimum Latency 1 Frame)
- Compressed Audio for Super Low Latency
- Multiple video format compatibility including
- 1080i, 1080p, 720p, 576i, 480i, 1080p50, 1080p59.94, 1080p60
- Phase Aligned Audio
- Embedded audio features up to 16 x ch/8 x PES (HVE9230)
- MPEG-1 Layer II : Stereo x 8
- MPEG-2 AAC/MPEG-4 AAC/HE-AAC : (5.1+Stereo) x 2
- Multiple audio format support up to 16 x ch/8 x PES combinations
- Closed Caption: CEA-608, CEA-708, ARIB STD-B37
- Ancillary Data Transmission Support : Time Code, SMPTE RDD11, SMPTE2038, ARIB TR-B22, TR-B23, OP-47
- Supports satellite Carrier ID
- Seamless Protection Switching with MVD5000, HVD9130 combination (* Decoder optional)
- Seamless bit rate change
- TS Over IP Support with FEC
- Supports DHCP
- Supports DPI (Digital Program Insertion)
- Easy operation from front panel display with control buttons as well as SNMP and WEB GUI via IP Network
- Supports BISS-1/E
- Quick Boot-up (23sec)
- Redundant Power Supply
- RoHS Compliant
Front/Rear Panel

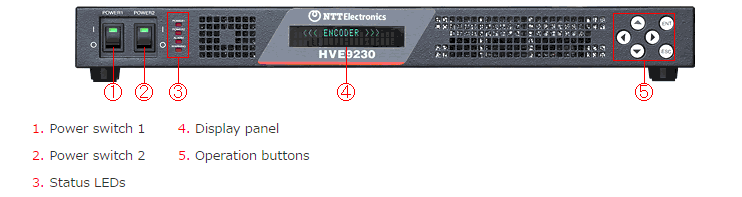

Front panel

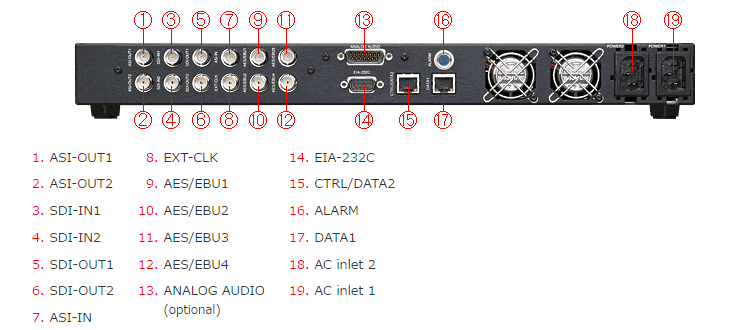

Rear panel
Specifications
Supported Standards
| System | ISO/IEC13818-1 (MPEG-2 SYSTEM TRANSPORT STREAM) |
|---|---|
| Video | ISO/IEC14496-10 (MPEG-4 AVC/H.264) |
| Audio | ISO/IEC11172-3 (MPEG-1 AUDIO Layer II) ISO/IEC13818-7 (MPEG-2 AAC) LC Profile ISO/IEC14496-3 subpart 4 (MPEG-4 AAC) LC Profile ISO/IEC14496-3 Amendment 1 (MPEG-4 HE-AAC v1) ISO/IEC14496-5:2001 Amendment 24 : 2009 (MPEG-4 AAC-ELD) ATSC-A52B (Dolby Digital) SMPTE302M-2002 |
Video Specifications
| Video Format | 1080I (1920/1440/1280/960x1080) @25Hz, 29.97Hz, 30Hz : SMPTE274M 1080P (1920/1440/1280/960x1080) @23.98Hz, 24Hz : SMPTE274M 1080P (1920/1440/1280/960x1080) @29.97Hz, 30Hz : SMPTE274M 1080P (1920/1440/1280/960x1080) @50Hz, 59.94Hz, 60Hz : SMPTE274M *4:2:0 only 720P (1280x720) @50Hz, 59.94Hz, 60Hz : SMPTE296M 480I (720/352x480) @29.97Hz : SMPTE125M 576I (720/352x576) @25Hz : ITU-R BT.656-4 |
|
|---|---|---|
| Profile/Level | AVC/H.264 | Profile : Main, High, High4:2:2 (8bit) Level : 4.2/4.1/4.0/3.2/3.0 Entropy : CABAC/CAVLC |
| MPEG-2 | - | |
| Video Input | SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω) | |
| Video Through Output | SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω) | |
| GOP Structure | M=1 to 3, N=1 to 30 | |
Audio Specifications
| Audio Input | AES/EBU (8ch) : BNC x 4 lines (1 Vp-p 75Ω) Embedded Audio (SDI1 16ch) : SMPTE299M, SMPTE272M Embedded Audio (SDI2 16ch) : SMPTE299M, SMPTE272M Analog (4ch) : D-SUB 15Pin (20KΩ, balanced) |
|---|---|
| Encoding Channels | AES max. 8ch, Embedded max. 16ch, Analog max. 4ch (Selectable for each stereo) |
| Encoding Method (HVE9210) |
MPEG-1 L2 (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES MPEG-2 BC (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(4/0), 5.1ch(3/2/1), 6ch(6/0)) max. 2PES MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 2PES MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 2PES MPEG-4 AAC-ELD (2ch(2/0), 4ch(3/1),5.1ch(3/2/1)) max. 2PES Dolby Digital (1ch(Mono), 2ch(Stereo)) max. 4PES SMPTE302M (2, 4, 6, 8 ch) max. 4PES |
| Encoding Method (HVE9230) |
MPEG-1 L2 (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 8PES MPEG-2 BC (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 8PES MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(4/0), 5.1ch (3/2/1), 6ch(6/0)) max. 4PES MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 4PES MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 4PES MPEG-4 AAC-ELD (2ch(2/0), 4ch(3/1), 5.1ch(3/2/1)) max. 4PES Dolby Digital (1ch(Mono), 2ch(Stereo)) max. 4PES SMPTE302M (2, 4, 6, 8 ch) max. 8PES |
| Sampling Frequency | 48kHz |
| Sampling Bit | 16bit (MPEG-1, MPEG-2 BC, MPEG-2/4 AAC, MPEG-4 HE-AAC, MPEG-4 AAC-ELD, Dolby Digital), 16/20bit (SMPTE302M) |
| Bitrate | 128/192 kbps (MPEG-1, MPEG-2 BC 1ch) 128/192/256/384 kbps (MPEG-1, MPEG-2 BC 2ch) 128/192 kbps (MPEG-2 AAC-LC 1ch) 128/192/256/320/384 kbps (MPEG-2/4 AAC-LC 2ch) 320/384/480/512/640 kbps (MPEG-2/4 AAC-LC 4ch, 5.1ch, 6ch) 64/96/128 kbps (MPEG-4 HE-AAC 2ch) 128/192/256 kbps (MPEG-4 HE-AAC 5.1ch) 128/192/256 kbps (MPEG-4 AAC-ELD 2ch) 256/384/512/640 kbps (MPEG-4 AAC-ELD 4ch, 5.1ch) 64/80/96/112/128/160/192/224/256/320/384/448/640 kbps (Dolby Digital 1ch) 96/112/128/160/192/224/256/320/384/448/640 kbps (Dolby Digital 2ch ) |
| Pass Through | Dolby E external encoder delay absorption function (0 to 2 frames) |
| Audio ch Control | ARIB STD-B39 |
Ancillary Data
| Data Type | TIMECODE, SMPTE334M, SMPTE2038, ATSC A/72, ARIB TR-B22, ARIB TR-B23, ARIB STD-B37 |
|---|
Internal Test Signal
Video: Color Bar, Audio: 1kHz Sine waveTS Specifications
| Output Interface | DVB-ASI : BNC x 2 lines (0.8Vp-p 75Ω) | |
|---|---|---|
| IP | 100Base-TX/1000Base-T (RJ-45) x 2 lines (Category 5/5e/6) RTP/UDP/IP (RFC1889), FEC (Pro-MPEG COP#3 R2 method) |
|
| External Clock Input | Max. 160.000MHz (ARIB STD B-18 clock input compliant) BNC x 1 line (0.8Vp-p 75Ω) |
|
| Stream Type | TS (188/204byte : No Reed-Solomon) | |
| Max. Multiplicity | Video 1, Audio max. 8, Ancillary Data max. 3, Total 12 | |
| Maximum TS Rate | 160.000Mbps (internal setting in 1 kbps units) | |
Control Specifications
| Local Control | FL display (20 digits x 2) + operator switches (6 buttons) |
|---|---|
| Remote Control | LAN 100Base-TX/1000Base-T (RJ-45) |
| Maintenance I/O | LAN 100Base-TX/1000Base-T (RJ-45) (joint use with remote control) |
| Alarm Output | Buzzer(volume adjustable), relay contact outputs (2 NO/NC contacts) |
| External Reset | System reset by relay contact input (1 NO contact) |
| Device Monitor Control | SNMPv1, WEB Based GUI |
Other
| TS encoding | BISS-1/E |
|---|---|
| Dimensions (mm) | 44(H) x 432(W) x 460(D) (w/o Connector, Foot, Rack mount bracket) |
| Weight (typical) | 6kg |
| Power Source | AC100V to 240V, 50/60Hz |
| Power Consumption | HVE9210 : 65W max. HVE9230 : 70W max. |
| Operating Environment | 0 to 45℃ , 30 to 90% (condensation not allowed) |
| RoHS Compliant | This product is RoHS compliant |
