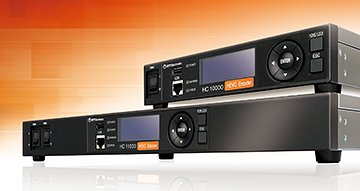

HEVC and H.264/AVC 4K/HD/SD Encoder

HC10000E/HC11000E

Superior quality and performance using single-chip HEVC Encoder LSI Supports 4K/60p 4:2:2.

Key features

• Superior quality and performance using NTT Electronics' cutting edge LSI
• Supports H.265/HEVC, H.264/MPEG-4 AVC
• Encodes 4K Video Input for contribution
• Supports HD 33ms, 4K 100ms Super Low Latency (59.94Hz) OP
• Embedded Audio up to 16ch/8 PES combinations
• Dolby Digital Pass-through
• Ancillary Data transmission support
• Supports BISS-1/E OP
• Supports HDR (HLG)
• 3G-SDI Throughout OP
• AES/EBU Audio Input OP
• Supports simultaneous multiple IP Output as well as DVB-ASI
• Multicast/Unicast of both IPv4 and IPv6 * with FEC, ARQ *
• Seamless Protection of 2-Streams *
• Two pairs of Ethernet ports for Management and TS over IP
• Dual power supply for redundancy (HC11000E)

Application

Front/Rear Panel

HC10000E (1RU Half) : Front panel

HC10000E (1RU Full) : Front panel

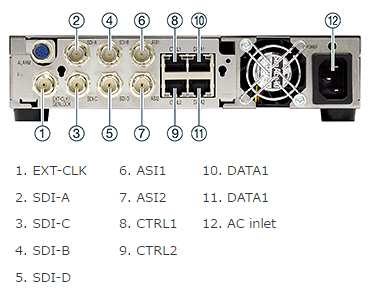

HC10000E (1RU Half) : Rear panel

HC11000E (1RU Full) : Rear panel

Specifications

Video

Input Interface		BNC ; 3G-SDI(SMPTE-424M)/HD-SDI(SMPTE-292M)/SD-SDI(SMPTE-259M)
Output Interface OP1		BNC ; 3G-SDI(SMPTE-424M)/HD-SDI(SMPTE-292M)/SD-SDI(SMPTE-259M)
Encode Method		H.265/HEVC, H.264/MPEG-4 AVC
Profile ; Level (Please see below for supported formats.)	H.265/HEVC	Profile: Main 422 10, Main 10, Main * ; Level: 5.1, 4.1, 4, 3.1, 3
	H.264/MPEG-4 AVC	Profile: High422, High, Main ; Level: 4.1, 4.0, 3.2, 3.0
Video Format @ Frame Rate	H.265/HEVC	2160P(3840x2160)@50Hz OP2, 59.94Hz OP2 1080P(1920x1080)@50Hz *, 59.94Hz * ; 1080I(1920x1080)@25Hz, 29.97Hz 720P(1280x720)@50Hz, 59.94Hz 576I(720x576)@25Hz * ; 480I(720x480)@29.97Hz
	H.264/MPEG-4 AVC	1080I(1920x1080)@25Hz, 29.97Hz 720P(1280x720)@50Hz *, 59.94Hz * 576I(720x576)@25Hz * ; 480I(720x480)@29.97Hz *

Audio

Input Interface			Embedded Audio 16ch(SMPTE299M, SMPTE272M), AES/EBU 8ch
Encode Audio Type			MPEG-1 L2 : 1ch(Mono), 2ch(Dual Mono), 2ch(Stereo); max. 8PES MPEG-2 AAC-LC : 1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1), 6ch(2/2/2); max. 4PES MPEG-4 AAC-LC : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1) ; max. 4PES MPEG-4 HE-AACv1 : 2ch(2/0), 5.1ch(3/2/1) ; max. 2PES MPEG-4 AAC-ELD : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1); max. 2PES SMPTE302M : 2, 4, 6, 8ch ; max. 4PES Dolby Digital Pass Through; max. 6PES

Ancillary

Data Type			TIMECODE, ARIB-TR-B22/B23, ARIB-STD B37 */B39 OP5, SMPTE334M *, SMPTE2038, OP-47 *, CEA-708 *

Transport Stream(TS)

Output Type	TIMECODE, ARIB-TR-B22/B23, ARIB-STD B37 */B39 OP5, SMPTE334M *, SMPTE2038, OP-47 *, CEA-708 *
Maximum TS Rate	200.000Mbps
TS Encryption	BISS-1/E OP4

Test Signal

Video : Color-bar signal
Audio : 1kHz sine wave (-18/-20 dBFS)

Control

Local Control	LCD (20digits x 4/brightness control available) + Front Switch (7 buttons)
Remote Control	WEB GUI, SNMP v1, Ping, Syslog

Others

Dimensions (mm)	HC10000E : H44 x W209 x D430 (w/o Connector, Foot, Rack mount bracket)
	HC11000E : H44 x W432 x D430 (w/o Connector, Foot, Rack mount bracket)
Weight	HC10000E : 5kg typ. HC11000E : 8kg typ. (w/o option card)
Supply Voltage	AC100V to 240V, 50/60Hz HC10000E : Single power supply HC11000E : Dual power supply for redundancy
Power Consumption	HC10000E : 100W max. HC11000E : 150W max.
Operating Environment	0 to 45℃, 30 to 90% (non condensing)
Compliance	RoHS, VCCI ClassA, FCC ClassA, EN55032 ClassA, EN61000-3-2, EN61000-3-3, EN55024, ICES

Option

	Suffix	Option Name	Description
Hardware	OP1	HC10000_OP_AES *	Digital Audio Input Board (Factory Option)
Software	OP2	HC1x000E_OP_4K	4K Encoding
	OP3	HC1x000E_OP_LOWDELAY	Super Low Latency Mode
	OP4	HC1x000E_OP_BISS	BISS Encryption
	OP5	HC1x000E_OP_B39	ARIB STD B39

* will be available in the future release. Please contact below for details.
This Specifications include paid optional features.
